Gottlieb Soundboard on FPGA


Features:

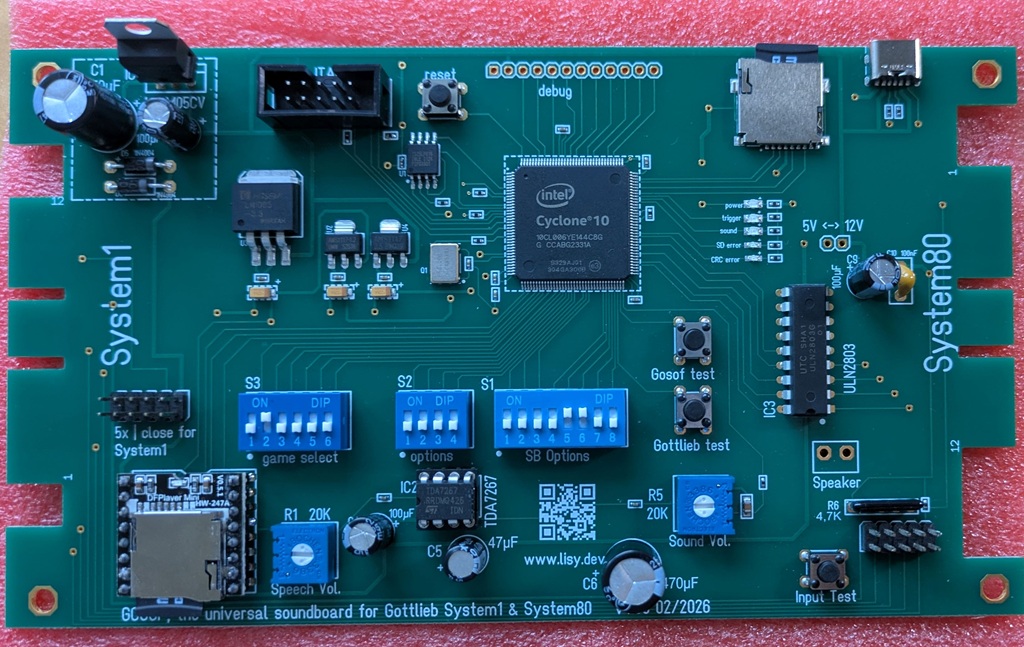

- NEW: hardware v2.30 comes with all parts in THT. Easy self soldering, easy part changes

 - emulation of ALL System1 soundboards (Note: works in general  but at the moment the sound is different from the original)

- emulation of ALL System80 & 80A soundboards (including speech)

 - emulation of early System80B soundboards (see list below)

- speech capabilities without the 'rare' SC-01 speech chip

- 5Volt only, no additional powersupply needed

- easy update of software via 'USB Blaster'

The speech is generated via a cheap MP3 player device, giving the opportunity to change the speech easily.

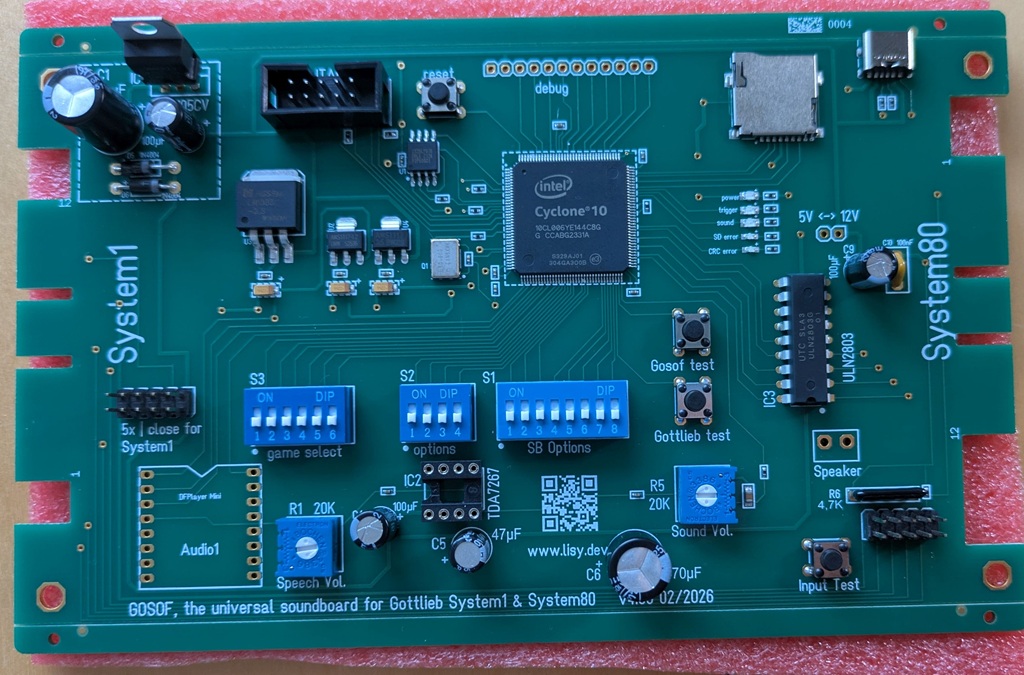

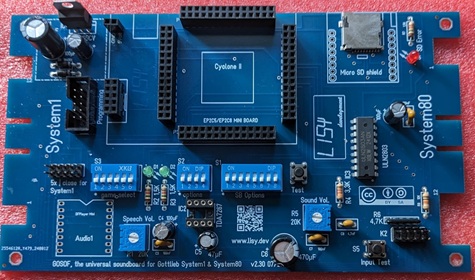

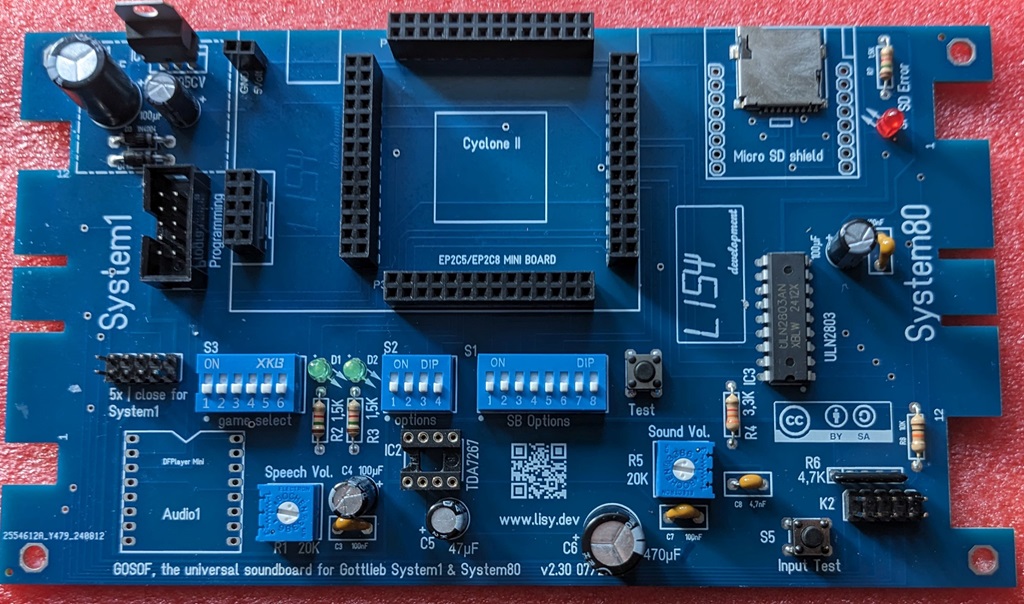

v2.30 preassembled by JLCPCB

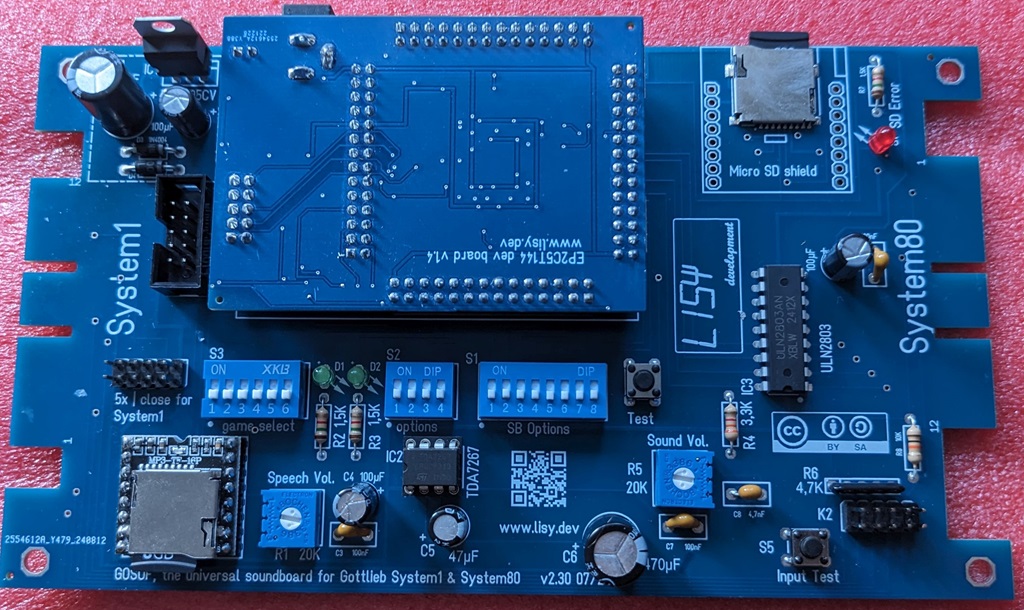

v2.30 complete (with additional parts from below)

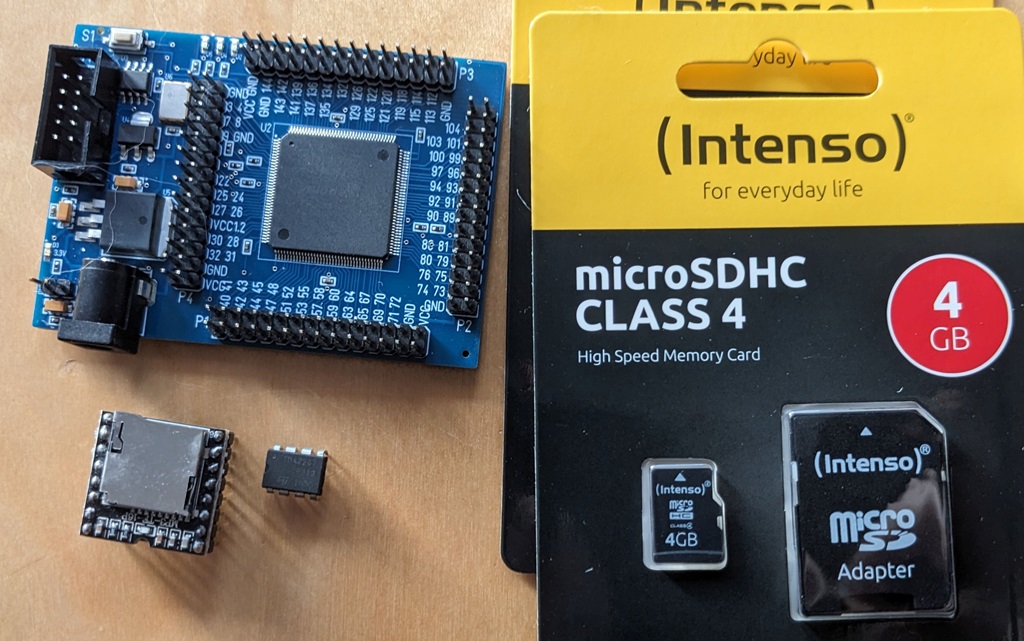

Parts needed

The PCB will be preassembled with all components by JLCPCB except the following parts. I added an example link to aliexpress shop where I ordered succesfully in the past.

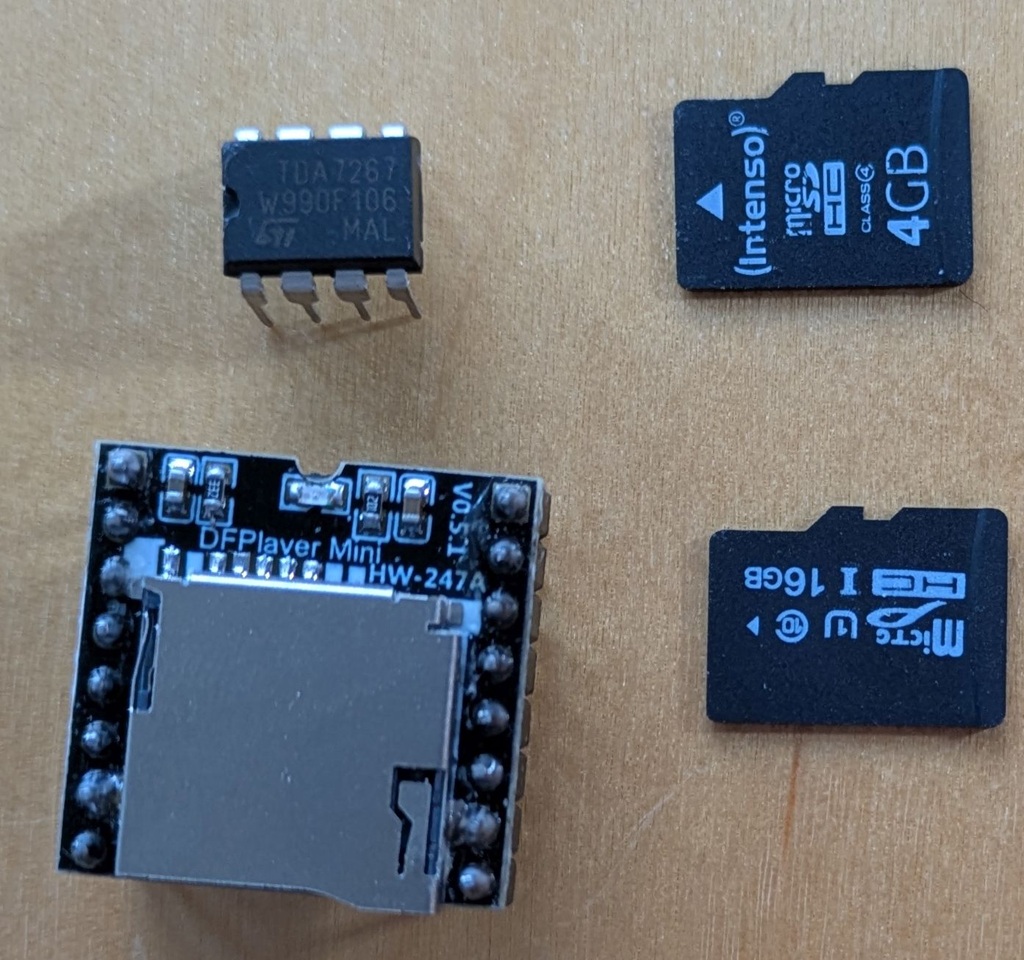

DFPlayer Mini

TDA7267

Altera CycloneII EP2C5T144 (include, at least one, programmer (USB Blaster))

Two standard micro SD cards ( one for the speeches in DFplayer and one to store the Gottlieb rom code for the FPGA) with minimum 1GB space each.

additional parts needed

- DFplayer and SD card is only needed for games with speech

- Gottlieb rom code need to be stored on the micro SD card in the 'micro SD shield' Adapter. Special format needed, have a look to the user manual!

Documentation & Software

how to order your Gosof PCB

Have a look to the PCB documentation section.

Needed Gerber Data, BOM and CPL you find below.

devices supported

At the moment with software v0.8 all System1, System80 & 80A games are supported!

System1 Multi Sound

Totem - Hulk - Genie - Buck Rogers - Torch - Roller Disco - Asteroid Annie.


All working 'on the bench', feedback needed

MA 55 Soundboard

Panthera - Spiderman - Circus - CounterForce - StarRace -James Bond - Time Line - Force II - Pink Panther - Eclipse

"export" versions of  Volcano - Black Hole - Devil's Dare

All working 'on the bench', feedback needed

MA 216 Soundboard


Mars - tested, works

Volcano - working 'on the bench', feedback needed

Black Hole - tested, works (sometimes 'wind' on lower playfield stops)

Devil's Dare - working 'on the bench', feedback needed

Rocky - working 'on the bench', feedback needed

Striker - tested, works

Q*Bert's Quest (works partially, feedback needed)

Caveman - working 'on the bench', feedback needed

MA309 Soundboard


Haunted House - Spirit - Punk! - Krull - Goin'Nuts - Super Orbit - Amazon Hunt - Royal Flush Deluxe

All working 'on the bench', feedback needed


MA 490 Soundboard

System80A
Rack'Em Up - Ready... Aim... Fire! - Jacks to Open - Touchdown - Alien Star - The Games - El Dorado City of Gold - Ice Fever
System80B
Bounty Hunter - Chicago Triple Play - Tag Team Pinball


All working 'on the bench', feedback needed
