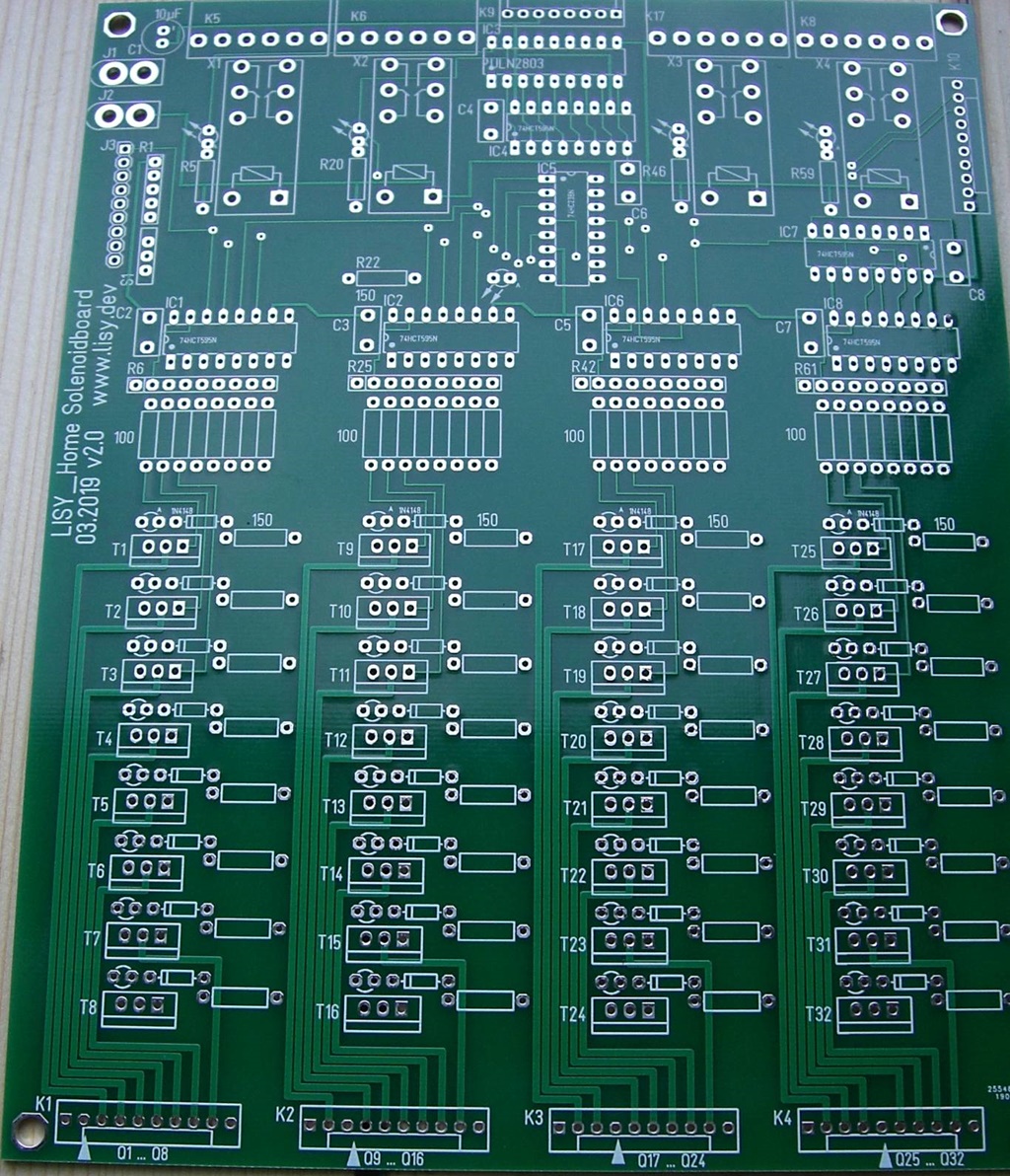

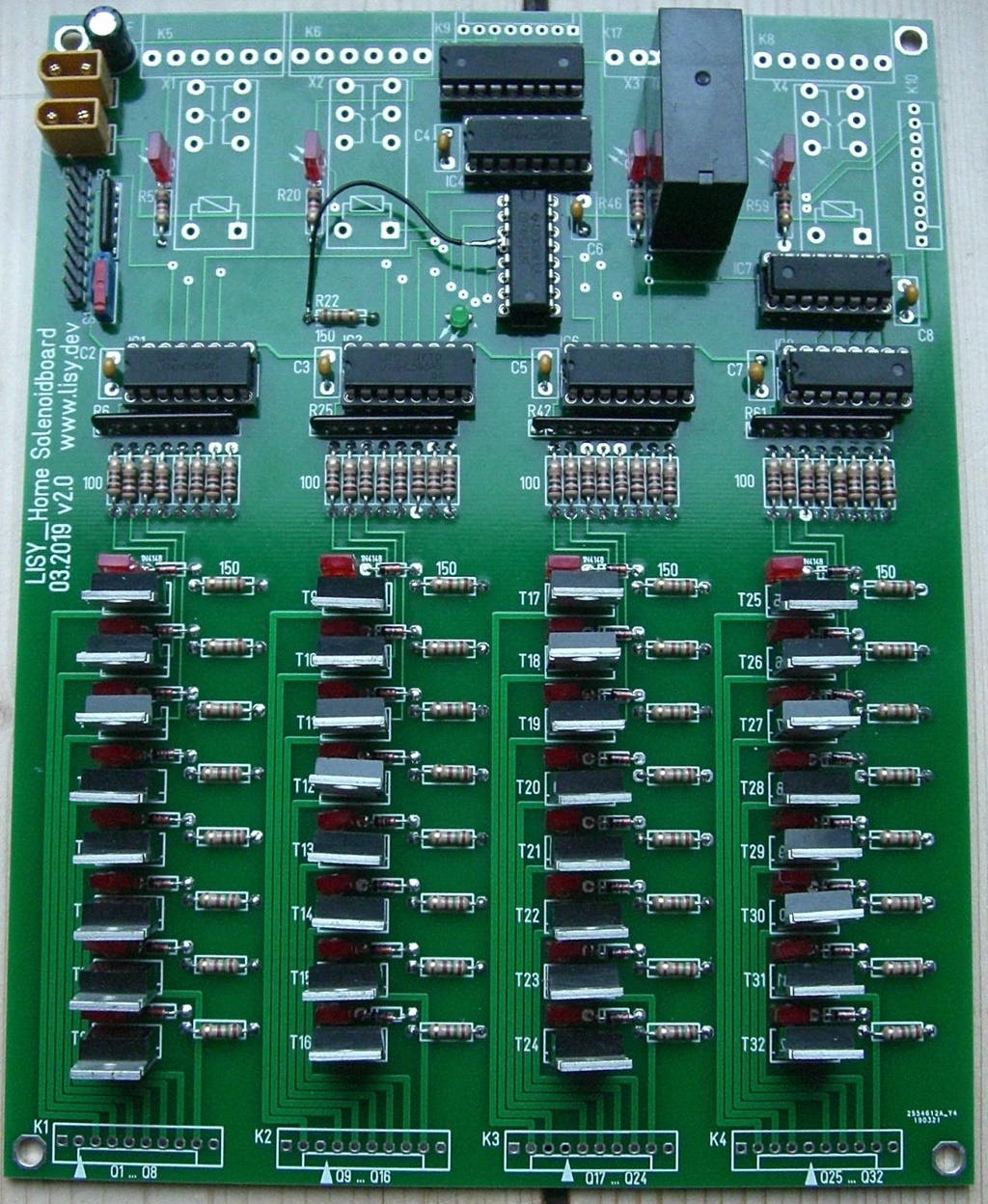

Solenoidboard V2.1

Solenoidboard, designed for use wth LISY_Home

Features:

 - 32 MOS FET

- 4 Relais

- 4 Transistor to GND

- 8 TTL



documents:

BOM - bill of materials

Gerber Data

Schematics

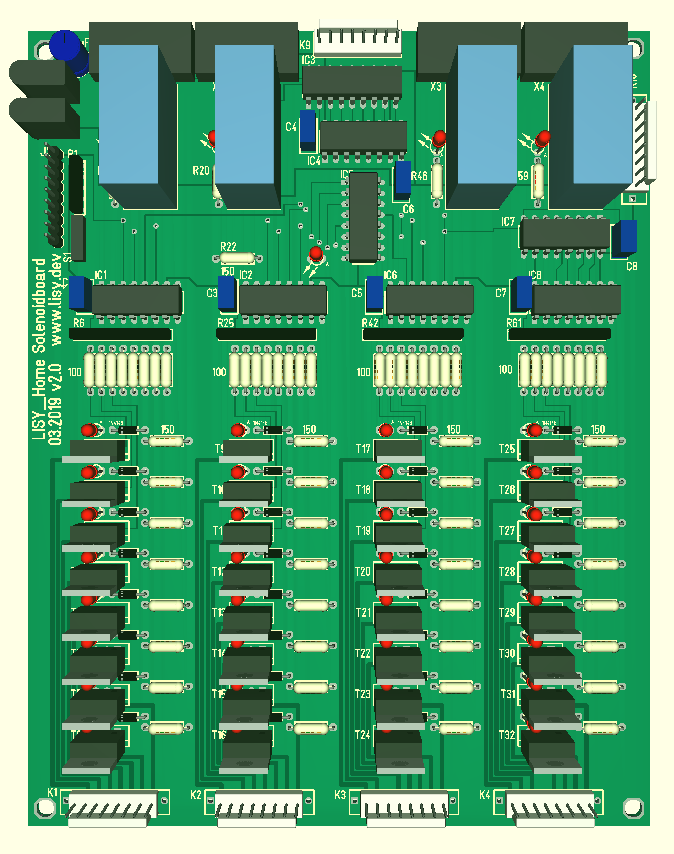

Layout

Bild in Lightbox öffnen (open image in lightbox).
Bild in Lightbox öffnen (open image in lightbox).
Bild in Lightbox öffnen (open image in lightbox).
