LISY1

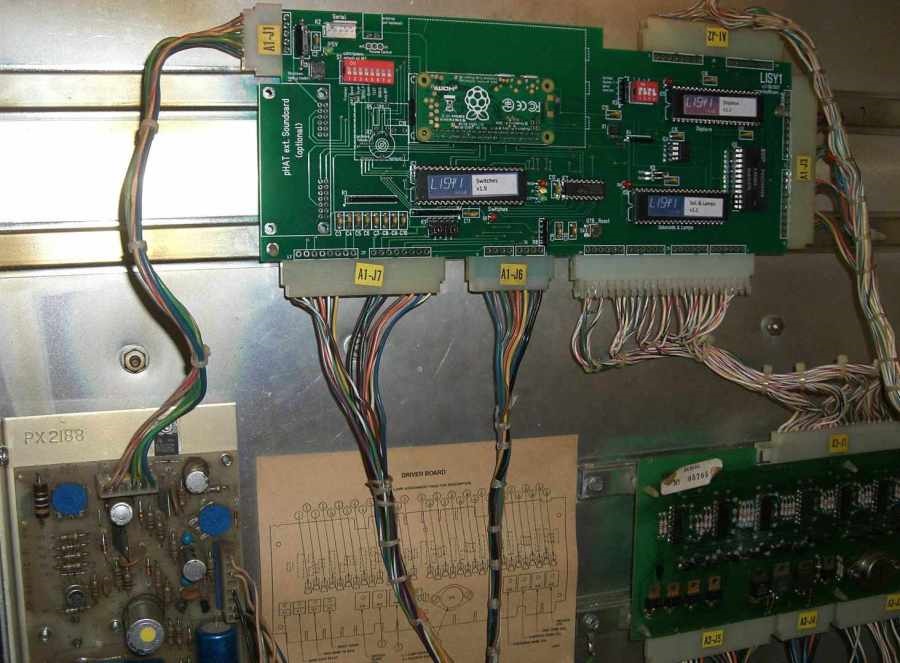

Bild in Lightbox öffnen (open image in lightbox). LISY1 in a Gottlieb Charlies Angels pinball machine

Gottlieb System1 games supported

Cleopatra - Sinbad - Joker Poker - Dragon - Close Encounters of the Third Kind - Charlie's Angels - Solar Ride - Count-Down - Pinball Pool- Totem - The Incredible Hulk - Genie - Buck Rogers - Torch - Roller Disco - Asteroid Annie and the Aliens

documentation

Hardware version 6.0

Changes to Version 5.1

- replacement of the SMD Chip X1 ( I2C repeater ) with two MOSFETs, so no SMD components anymore

- replacement of outdated 238er Decoder Chips with 595 shift Register

All other components are identical to version 5.1 Until I find time to document the Assembly, just use the assembly guide from Version 5.1 and leave out the 'X1' section and add the 8 protection resistors.

For this Version I also do provide Gerber Data und the schematics.

In additon he PCB can easily be ordered at 'aisler.net' with the following link:

https://aisler.net/p/RVHNMUKZ

Caution: make sure you order 'HD Service' from Aisler not the Blitz Service. With Blitz Service the cutouts (gaps) within the Edge Connectors will not be made, as they are smaller then 2,4mm, which is the minimum for Blitz Service. Costs for Blitz & HD Service are the same, only production time is longer for HD Service.

Hardware Version 5.1

The PCB can easily be ordered at 'aisler.net' with the following link: https://aisler.net/p/ZJHXFHMP

Caution: make sure you order 'HD Service' from Aisler not the Blitz Service. With Blitz Service the cutouts (gaps) within the Edge Connectors will not be made, as they are smaller then 2,4mm, which is the minimum for Blitz Service. Costs for Blitz & HD Service are the same, only production time is longer for HD Service.

From Aisler you need to order at least 3 PCBs. If you do not need three PCB and do not have pinballfriends to share LISY with, send me a mail; I will try coordinate sharing for you.

PIC Software is included in the LISY Image and can be programmed to the PICs via an integrated PIC programmer.

Digikey BOM is work in  progress

Bild in Lightbox öffnen (open image in lightbox). LISY1 with optional connectors, replacing the old Gottlieb connctors
