GODISP_DMD

Replacement display for Gottlieb 80B & SYS3 games , it can replace:

- Gottlieb 80B displays MA-644, used in

Bounty Hunter - Chicago Cubs Triple Play - Tag Team - Rocky - Raven
Rock Encore - Hollywood Heat - Genesis - Gold Wings - Monte Carlo -Amazon Hunt II -
Spring Break - Arena - Victory - Diamond Lady - TX Sector - Robo War

- Gottlieb 80B display MA-999, used in
Excalibur - Bad Girls - Big House - Hot Shots - Bone Busters Inc.

- Gottlieb SYS3 display MA-1361, used in

Lights Action Camera - Silver Slugger - Vegas - Deadly Weapon - Title Fight - Nudge-It - Bell Ringer - Car Hop - Hoops - Cactus Jack's - Class of 1812 - Surf 'n Safari - Caribbean Cruise - Operation Thunder


documentation

PCB can be preassembled by JLCPCB. You only need to add a few components:

- PIC18F45K42 (link to Mouser) The PIC need to be programmed, you find the programm on my repository server (link below). You can program the PIC either with my DIY programmer or with the PICKIT3.

- Modul 120x240mm,P 1,875 LED Flexible e.g. from Aliexpress here. Modules with 'PWM chipsets' are not supported!

For other parts see link to Reichelt shop cart and have a look into the user manual.

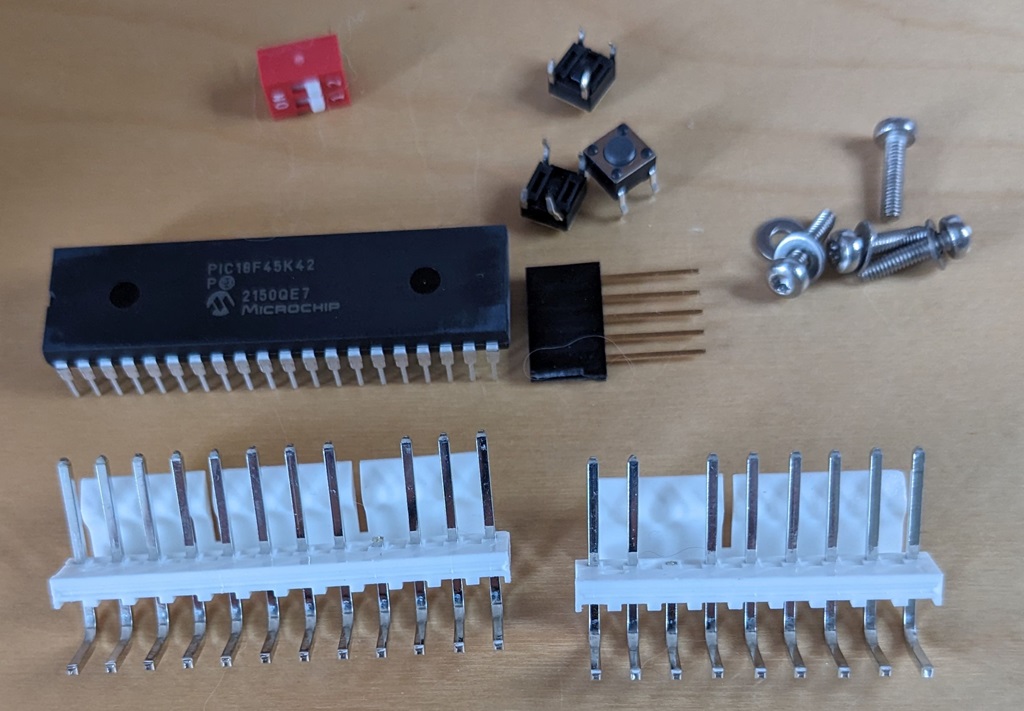

needed parts (picture without needed LED Module)
Note: Hardware v2.0 has a small bug with SYS3. You need to remove 5 caps. This is resolved with latest v2.01 version.
GODISP_DMD v2.0 preassembled by JLCPCB (top side)

GODISP_DMD v2.0 preassembled by JLCPCB (bottom side)

GODISP_DMD v2.0 complete (top side)

GODISP_DMD v2.0 complete (bottom side)

how to order your GODISP_DMD display

Have a look to the PCB documentation section.

Needed Gerber Data, BOM and Component Placement List (CPL) you find on my repository server; see link below.

GODISP_DMD in an Gottlieb 80B Excalibur
example with reduced font
SYS3 Operation Thunder
