Gorat80

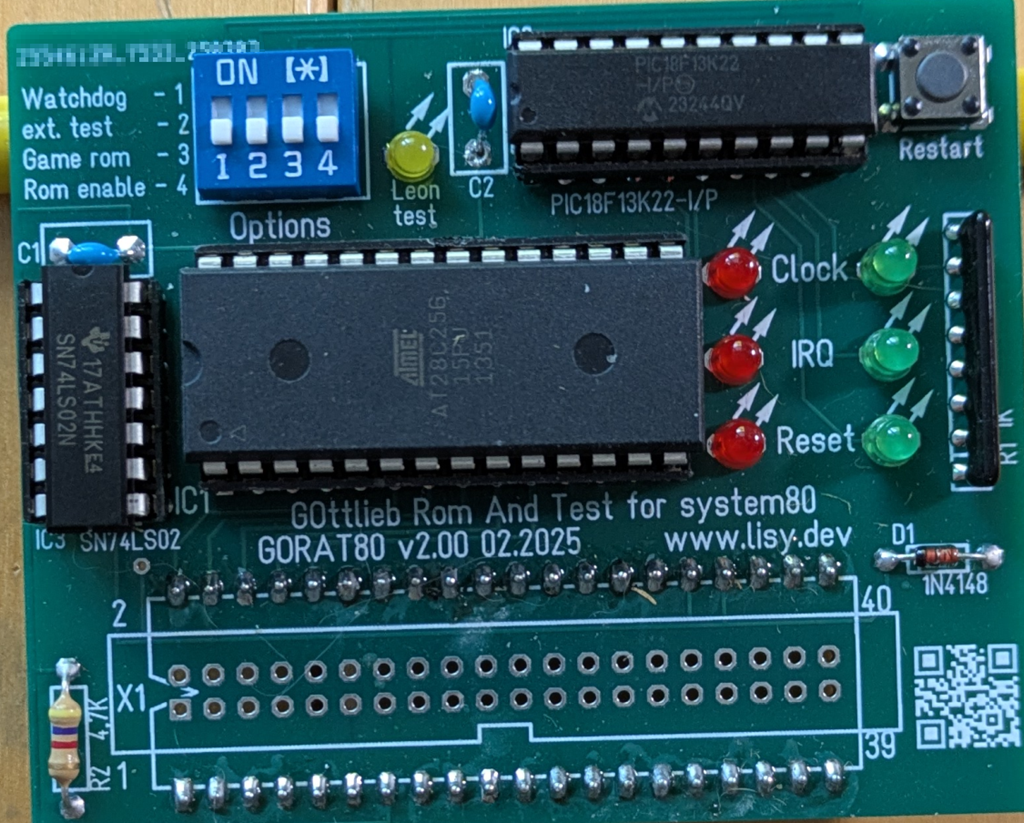

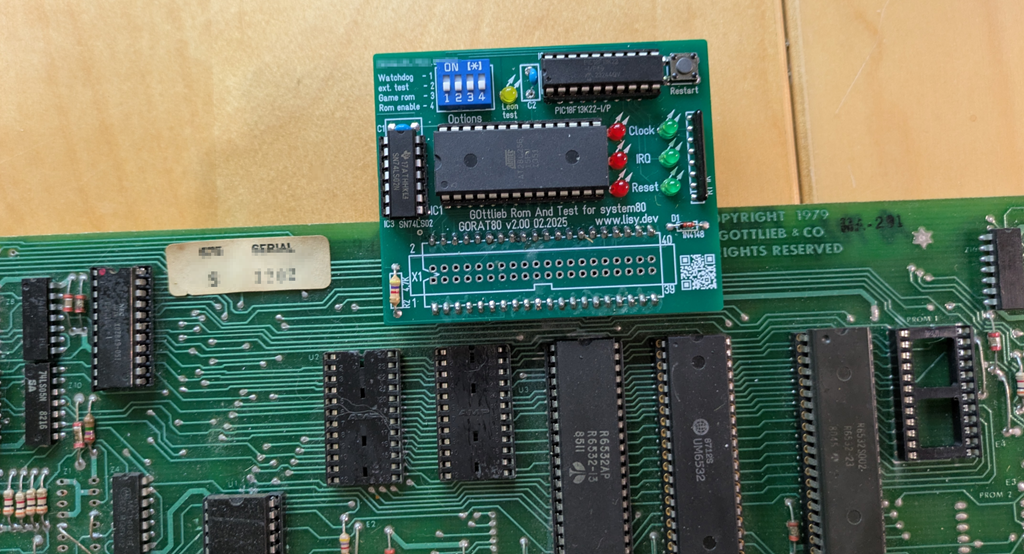

GORAT80 (GOttlieb Rom And Test for System80) is an 'intelligent' adapter board which is plugged into the 'TC-1 slot' of a Gottlieb System 80 (including 80A and 80B) MPU and provides the following functionalities:

 • Monitoring and visualization (also during operation)

 • Replacement for all ROMs (Game Rom and System ROMs Prom1, Prom2,U2 and U3)

 • Replacement for the System 80 Reset Board (including visualization when triggered)

• Test of the hardware: CPU, RAM and the three RIOTs (Leon Borre or Marco test ROM)

​Gorat80 v2.00

The adapter is controlled by a PIC ( PIC18F13K22 ). You need to program the PIC with the hex file provided! This can be done e.g. with a PICKIT3

Roms can be placed on a 27C256 (32 KByte) Eprom

Test by Chris Hibbler
