WillFA11 - MPU replacement for SYS11 & Data East
This is a 1:1 functional replacement of Williams System11 & Data East MPU
WillFA11 comes with a 'special handling of the special solenoids' Even if the special solenoid switch gets stuck, the related special solenoid will pulse and not permanently activated.
BOM and CPL provided do include all DIP sockets using the 'hand soldering' service from JLC.
You only need to purchase the DIP chips, the SD card and the Cyclone IV board and place them on the board. After programming the FPGA ( USB Blaster with JTAG support needed) and writing my rom image onto the SD card you will have a full functional board. Have a look to the user manual for details.
Goal is to be able to replace Williams SYS9...SYS11 & Data East MPUs.
Current hardware version 0.91 ( April 2024) do support SYS11C and early Data East games only!
This includes the following games:
| The Bally Game Show | SYS11 C |
| Pool Sharks | SYS11 C |
| Rollergames | SYS11 C |
| Diner | SYS11 C |
| Radical! | SYS11 C |
| Dr. Dude | SYS11 C |
| Riverboat Gambler | SYS11 C |
| Bugs Bunny's Birthday Ball | SYS11 C |
| Laser War (3/87) | Data East V1 |
| Secret Service (2/88) | Data East V2 |
| Torpedo Alley (8/88) | Data East V2 |
| Time Machine (11/88) | Data East V2 |
| Playboy 35th Anniversary (5/89) | Data East V2 |
| ABC Monday Night Football (9/89) | Data East V2 |
| Robocop (01/90) | Data East V2 |
| Phantom of the Opera (4/90) | Data East V2 |
| Back to the Future (6/90) | Data East V3 |
| The Simpsons (10/90) | Data East V3 |

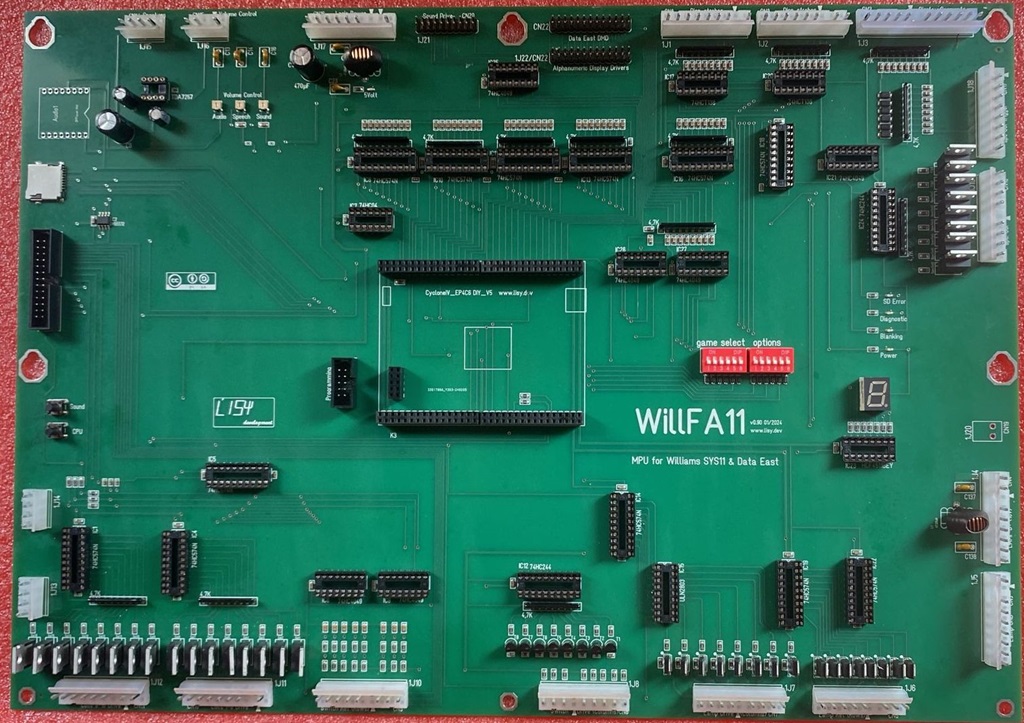

v0.90 assembled by JLCPCB

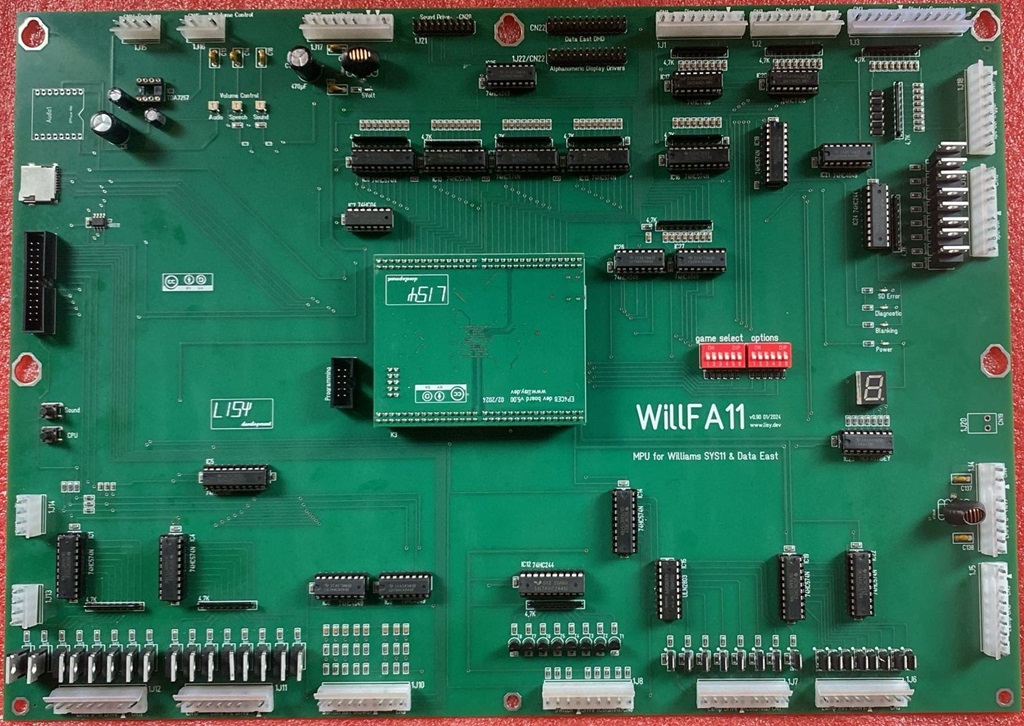

WillFA11 - for Williams System11 & Data East games

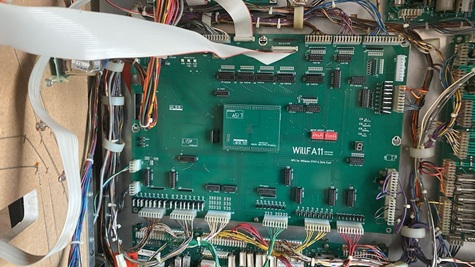

WillFA11 in a Williams Police Force

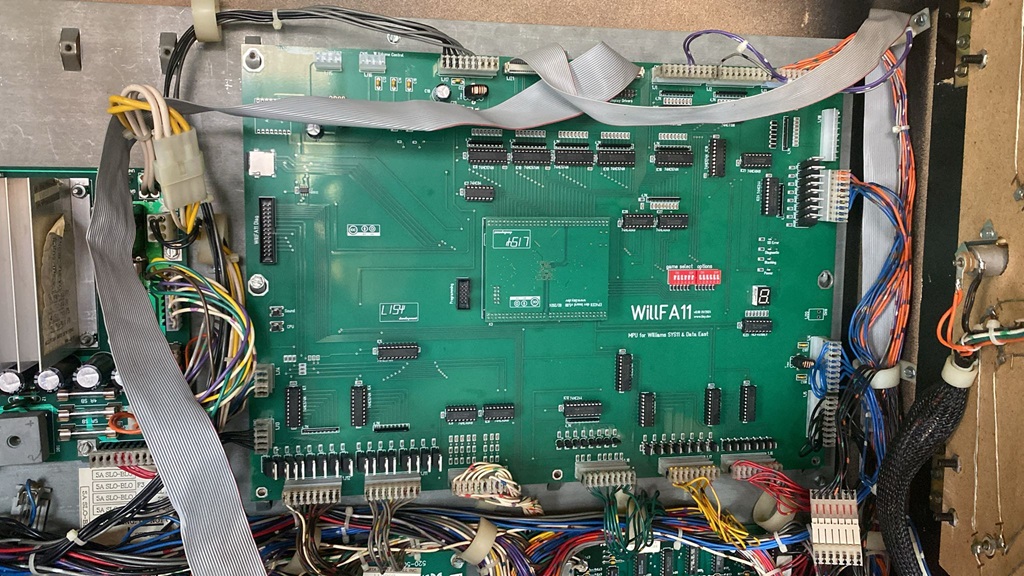

WillFA11 in a Data East Frankensteinparts needed
In additon to the WillFA11 PCB preassembled by JLCPCB you need a few ICs, a micro SD card, my FPGA board v5 and an USB Blaster ( with JTAG support) to be able to program your FPGA.
For the other parts see the Reichelt shop cart.

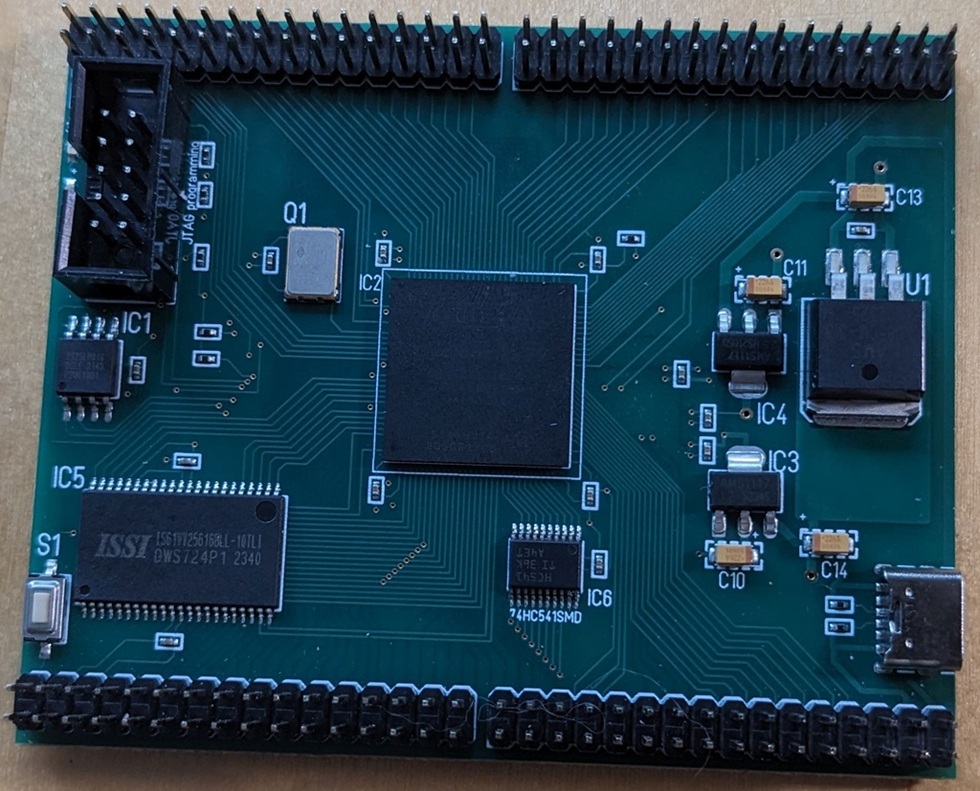

You need my FPGA board v5 for WillFA11 !Documentation & Software
how to order your WillFA11 PCB
Have a look to the PCB documentation section.
Needed Gerber Data, BOM and Component Placement List (CPL) you find on my repository server
