GottFA80_PLus 'All in one' - Power Supply, Lampdriver, Solenoiddriver & Soundboard included
Based on my v1 GottFA80 MPU, but with integrated Power Supply, Driverboard. and Soundboard.
When preassembled by JLCPCB you only need to put some ICs into the sockets, solder the MP3 Miniplayer ( see my Reichelt shop cart), use 3 'M3' screw to fasten the voltage regulator on the heatsink and insert & program the Cyclone IV FPGA.
GottFA80_PLuS preassembled by JLC
GottFA80_PLuS completesupported soundcards
GottFA80_PLuS can emulate soundboards of all System80/80A and early 80B games (Bounty Hunter - Chicago Triple Play - Tag Team Pinball). This includes the MA216 games with speech. Original speech can be adjusted by changing wav or MP3 files on the SD card in the integrated Miniplayer.
Gottlieb System80 games supported
System80
Panthera - Spiderman - Circus - Counterforce - Star Race
James Bond - Time Line - Force II - Pink Panther - Mars - God of War
Volcano - Black Hole - Haunted House - Eclipse
System80A
Devils Dare - Rocky - Spirit - Punk -Striker - Krull
Q*Bert's Quest - Super Orbit - Royal Flush Deluxe - Goin' Nuts
Amazon Hunt - Rack 'Em Up - Ready...Aim...Fire! - Jacks To Open
Touchdown - Alien Star - The Games - El Dorado City of Gold - Ice Fever
System80B
This MPU is designed for System80/80A games but do work on System80B games also.
80B games with integrated soundcard support:
Bounty Hunter - Chicago Cubs Triple Play - Tag Team
80B games without integrated soundcard support (work in progress):
Rocky - Raven- Rock Encore - Hollywood Heat - Genesis - Gold Wings - Monte Carlo -Amazon Hunt II -
Spring Break - Arena - Victory - Diamond Lady - TX Sector - Robo War - Excalibur - Bad Girls - Big House - Hot Shots - Bone Busters Inc. - Night Moves
Limitations for 80B games:
- the integrated power supply cannot be used
- on some 80B games (display on top) you need to extend the wiring
Parts needed
In addition to the preassembled PCB you need:
- my cyclone IV v4 FPGA board ( note that Cyclone II boards do not work with GottFA80S! )
- the GOSAD80 adapter ( order via Gerber GOSAD80.ZIP at JLCPCB )
- two 4 pin Molex connectors ( link to Aliexpress , order 4P top entry)
- an adapter cable ( link to Aliexpress , order 4pin/30cm/double )
- Miniplayer ( link to Aliexpress )
- TDA7267 ( link to Reichelt; TDA6267 from Aliexpress are often faulty! )
- two micro SD cards ( link to Reichelt )
Needed parts

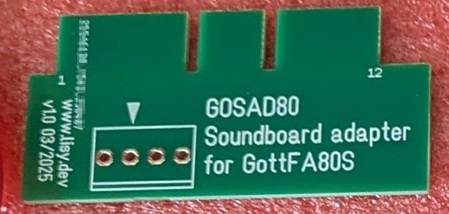

do not forget to order my adapter to connect to the soundboard connectorOn my repository server you find two BOM versions for JLCPCB. One with THT ICs assembled by JLCPCB and one with IC sockets. If you choose the IC socket version you need to buy the ICs yourself. See Reichelt shop cart below.
Documentation & Software
Due to copyrigth on Gottlieb roms the SD card does not contain any rom code, but do provide the right struture for GottFA80_PLuS. Have a look at the user manual to see how you can copy your rom images onto the Sd card.
how to order your GottFA80_PLuS PCB
Have a look to the PCB documentation section.
Needed Gerber Data, BOM and Component Placement List (CPL) you find on my repository server
GottFA80_PLuS in a Gottlieb System80 Black Hole. Providing easy speech capabilities to an 'export version' of the game.
