Cyclone10 dev board

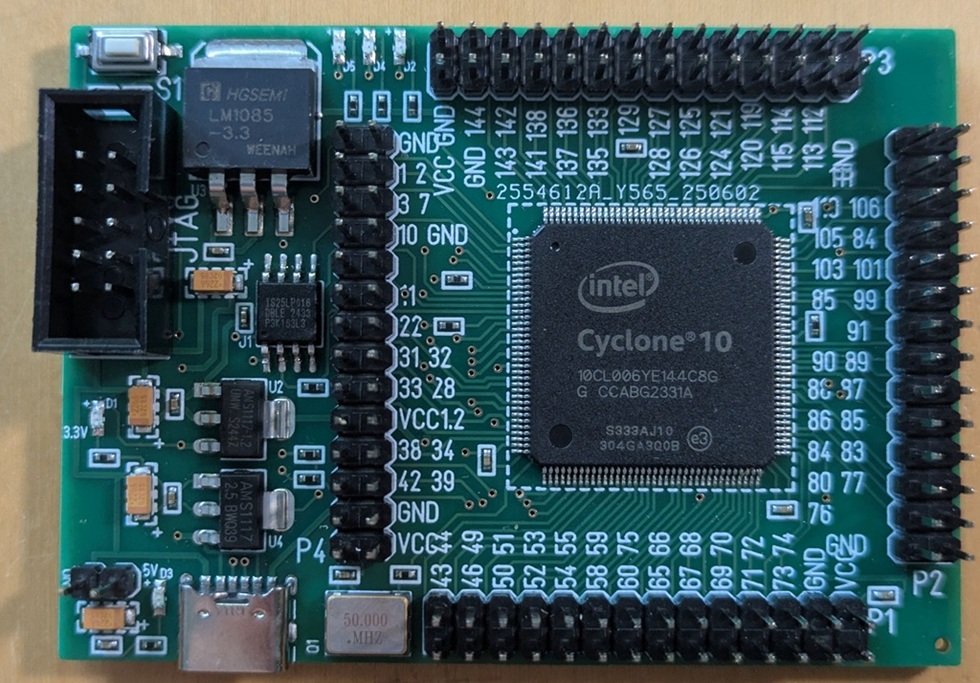

Latest design, based on the cheap 'Cyclone 10' chip by having the same pinout as my cyclone II and Cyclone IV boards.

Even possible I did not create Cyclone10 software versions for all of my 'FA boards'. Check my compatibility chart for details and let me know if you miss the Cyclone 10 version for your board.

how to order your Altera DIY board

Have a look to the PCB documentation section.

Needed Gerber Data, BOM and Component Placement List (CPL) you find on my repository server

Notes

For the Cyclone 10 board you may need to update your programmer software as version v13.0sp1 do not support the Cyclone 10. I'm using v22.1 which do also support Cyclone II & IV. You can download the software for free on the Intel Webpage, see link to my doc below.

When ordering check carefully if all parts are available. It could be necessary that you order some parts upfront via your JLCPCB 'my parts library'. Ordered components are usually available within days. Check the JLCPCB help on how this can be done.

In order to have best results (less soldering errors) best to use ENIG for the surface finish.'ENIG'

Also make sure you confirm the placement of USB connector J1 when ordering
