Gottlieb Switch Tester for 'the bench'
for ALL System80, 80A and 80B games.
With additional DIP switch banks for simulating permanently closed switches.
In additon to the PCB you need:
A1J6 Edge connector (e.g. DIY from here ) and
16 wires CH3.96 (e.g. from Aliexpress here )

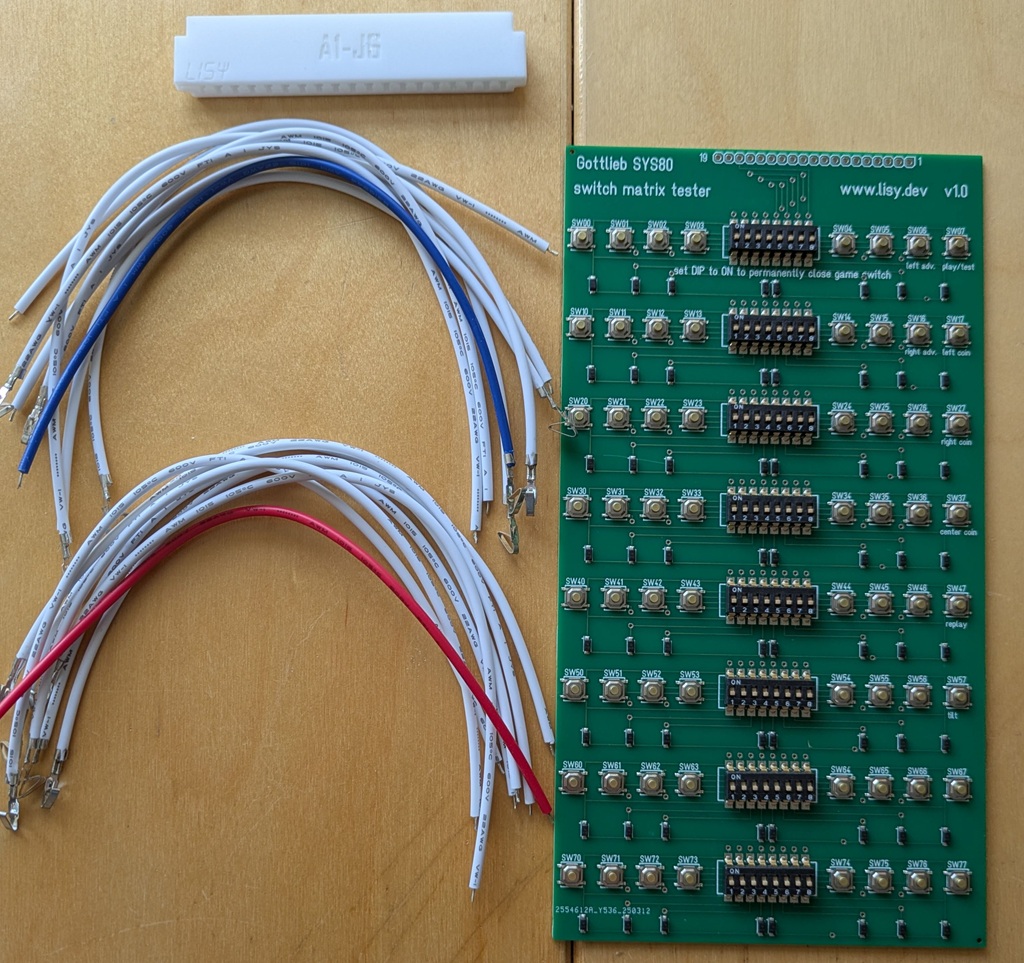

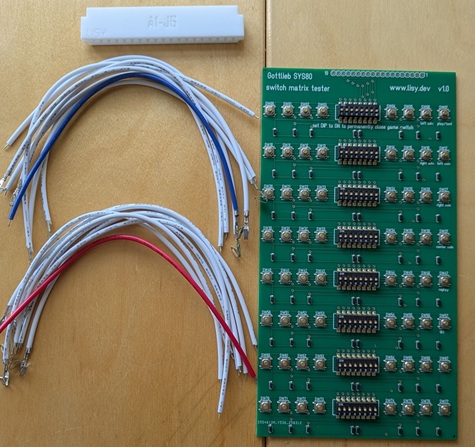

PCB assembled by JLCPCB and accessories
Switchtester connected to a GottFA80Connections

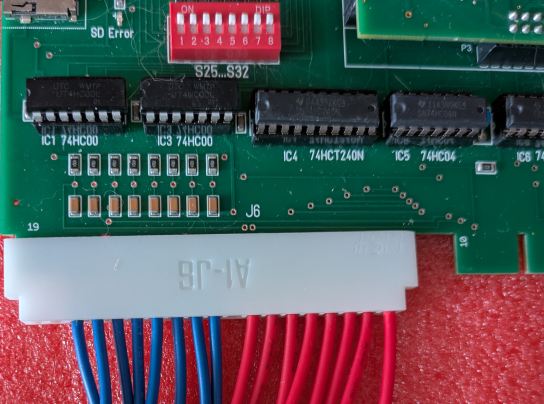

Just connect the Pins on the Switchtester 1:1 to the Edge Connector. 16 connections needed.
The Pins are numbered 1..19 from right to left:
1..8 (Switch Strobes)
9 (GND) not needed
10 ... 17 (Switch Returns)
11 ( +5 Volt) not needed
19 not connected
